Wafer Roll Production Line
Wafer Roll Production Machine
The APEX Wafer Roll Production Line combines batter feeding, gas baking, roll forming, and cutting for industrial wafer roll production, with a dedicated filling system for filled products.
Four forming streams work with dedicated batter and filling pump units to support coordinated product flow. PLC control and a Siemens touchscreen provide access to key operating settings, while variable speed drives allow adjustment of baking drum, forming, feeding, and conveyor speeds.
Servo rotary cutting and photoelectric length detection support controlled cutting to the selected product length.
For the stated reference product of Φ8 × 70 mm and approximately 7 g per filled roll, the specified output is approximately 480 pieces per minute, or 200 kg per hour.

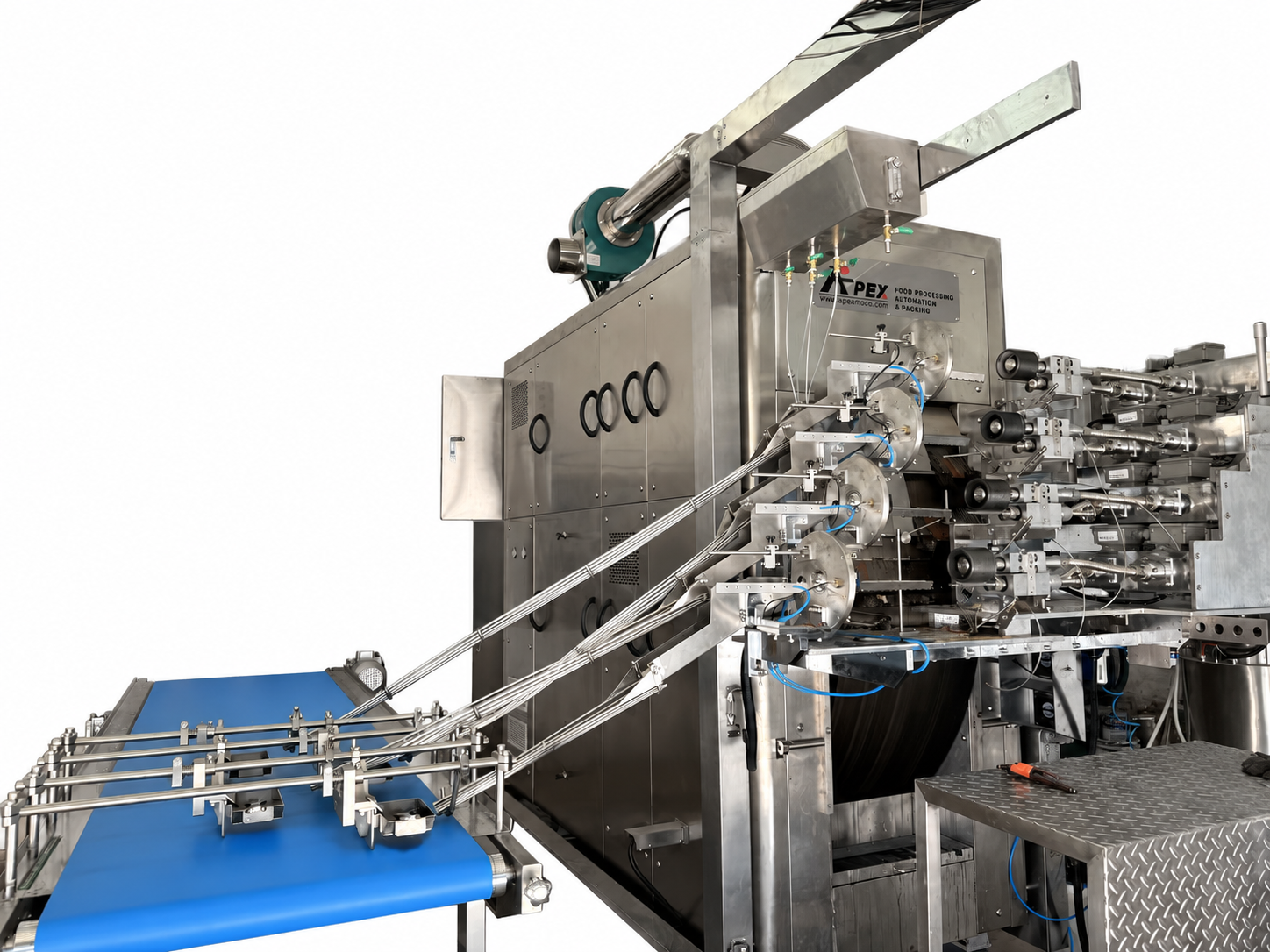

Machine view with a digitally edited white background. The photograph shows part of the supplied system.
Controlled Baking and Product Formation
Direct flame bottom heating and infrared surface burners provide the specified baking arrangement. Adjustable forming and material feed speeds allow operating conditions to be matched to the product recipe.
Product Handling and Filling System
A dedicated filling pump group supplies the filling material, while the forming and cutting section prepares the rolls for conveyor discharge.
The supplied equipment list includes:
Mixer
Storage vessel
Batter pump group
Filling pump group
Baking unit
Forming unit
Control cabinet
Conveyor
Technical Specifications
| Item | Specification |
|---|---|
| Forming streams | 4 |
| Reference product | Filled roll: Φ8 × 70 mm; approximately 7 g per piece |
| Reference output | Approximately 480 pieces/min; 28,800 pieces/h; approximately 200 kg/h |
| Main machine dimensions | 3000 × 1870 × 2850 mm |
| Equipment electrical power | 30 kW, as listed in the supplied specification |
| Fuel options | LPG or natural gas |
| Approximate gas consumption | LPG: 8 kg/h; natural gas: 16 m³/h |
| Baking heat | Bottom: direct flame; surface: Japanese infrared burners |
| Cutting and length detection | Servo rotary cutting; photoelectric switch |
| Controls | Siemens PLC and SMART 1000IE V3 touchscreen |
| Drives and components | Danfoss inverters; Innomotics forming motor; Delta servo motor; SKF forming bearings |
| Main machine outer cover | 304 stainless steel |
| Material contact surfaces | 304 stainless steel as listed for baking/storage/conveyor; 316 for batter pump, filling pump and mixer |
| Filling pump unit | 1470 × 1100 × 1500 mm; 400 kg |
| Batter pump unit | 1580 × 1140 × 1100 mm; 300 kg |
| Conveyor | 3710 × 1180 × 1450 mm; 100 kg; PU belt |
Production Process
Batter mixing and feeding → Baking → Roll forming → Cutting → Conveyor discharge
The filling system supplies filling material during forming for filled products.
Production Capacity
Output depends on product dimensions, recipe, filling ratio and operating conditions. The capacity values above describe the stated reference product, rather than every wafer roll format.
For the reference filled roll measuring Φ8 × 70 mm and approximately 7 g per piece, the specified production capacity is:
Approximately 480 pieces per minute
28,800 pieces per hour
Approximately 200 kg per hour
Discuss Your Wafer Roll Project
Send us your target roll diameter and length, filling requirements and required output. Contact APEX to discuss the machine configuration and connection to your downstream packing process.
